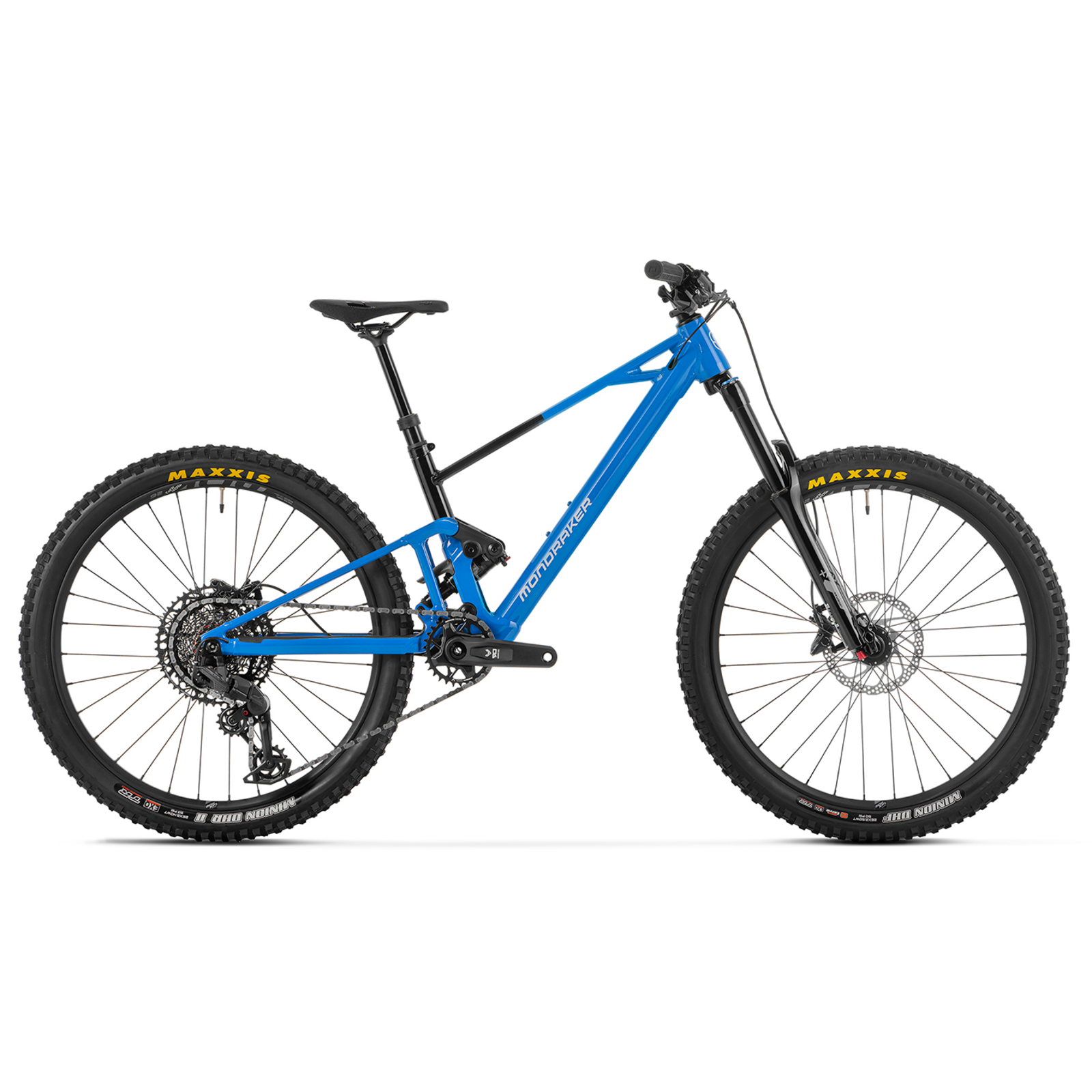

Mondraker F-TRICK 26 one size blue / black
Artikel-Nr.: 7002607000-00198000
Marke: Mondraker
Farbe: blue / black
Größe: one size
Das neue F-TRICK ist so sehr von den Mondraker Bikes für Erwachsenen beeinflusst, dass man es kaum mehr ein Kids Bike nennen kann. FORWARD GEOMETRY, ZERO SUSPENSION, Dropper Post, 12x148mm Hinterradnabe, 30mm Vorbau, 4 Kolben Bremse, 2.4“ Reifen und ein Federweg von 120mm/130mm am Heck sind nur die Highlights.
Schaltung: Sram 70 Eagle, T-Type, 12s
Kurbel: Sram 90 T-Type, DUB axle, Direct mount chain ring, 155mm
Gewicht (kg): 13.9
Gabel: X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Nabe: DA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub
Felgen: MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
Speichen: CN round stainless steel
Pedalen: SDG Slater JR
Kette: Sram 70 T-Type, 12s Flattop, PowerLock
Kassette: Sram XS-1270, 10-52T, 12s
Schaltwerk: Sram 70 Eagle, T-Type, 12s
Schalthebel: Sram Trigger 70, 12s, T-Type Actuation
Lenker: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Griffe: Onoff Beehive, 1lock-on, 135mm
Vorbau: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Sattel: SDG Fly JR
Sattelstütze: X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm
Rahmen: F-Trick 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, 12x148mm rear axle, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design. 26” wheelset compatible
Tretlager: Sram DUB BSA, sealed bearings, 73mm
Bremshebel: Shimano MT501, servo wave, alloy lever
Steuersatz: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Nabe vorne: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
